COMPACT SERIES

Power Range：10 - 80 KVA
Online UPS
3:3
True Double-Conversion Online Technology True Sine-wave Output provides clean energy High Reliability with Microprocessor Control 0,9 Output Power Factor Wide Input Voltage Range (110~300V)
»

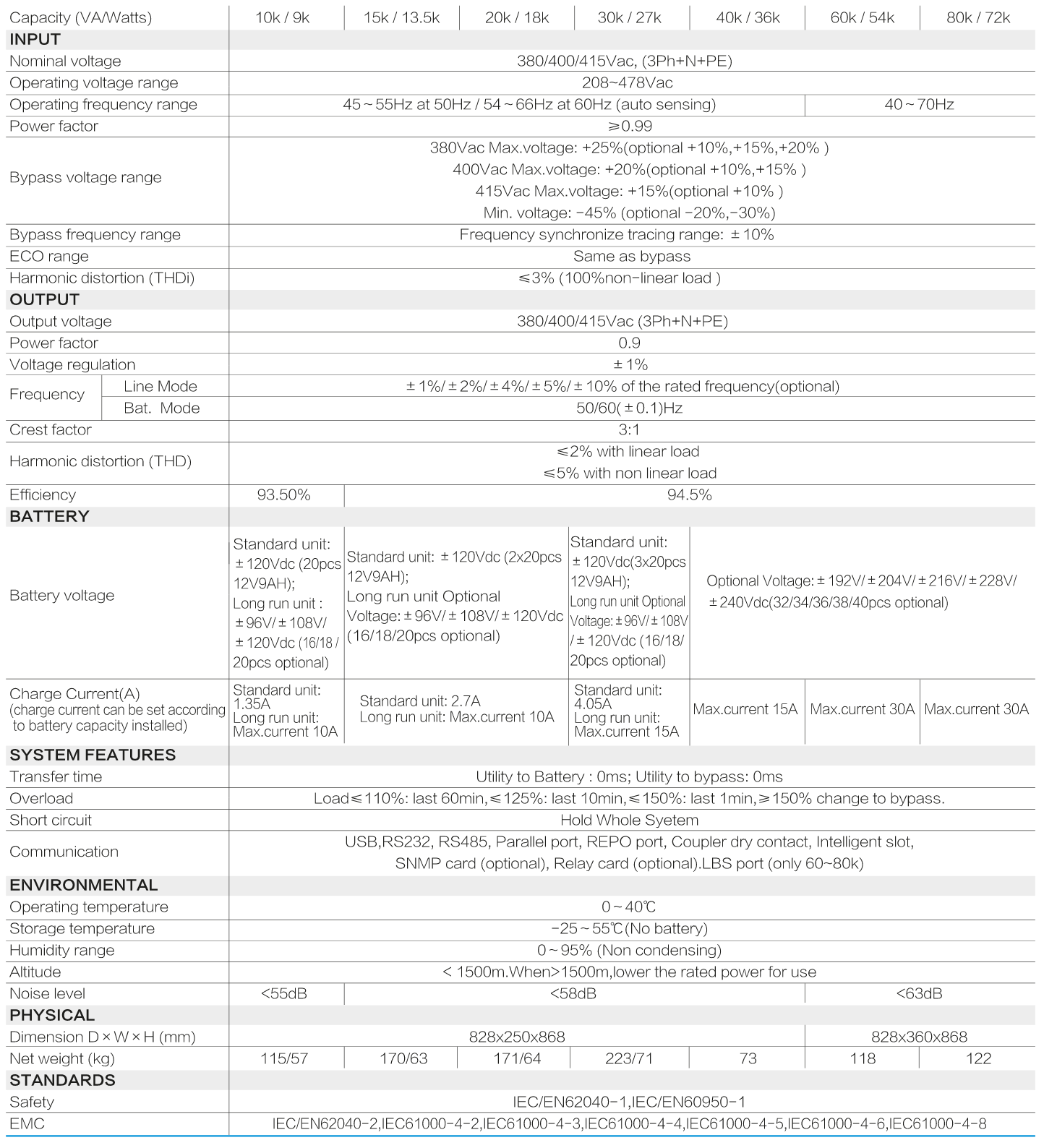

SPECIFICATIONS

Technical specifications of the mode

  • High Frequency and True Double-Conversion
    DSP (Digital Signal Processors) Technology
    Input Power Factor Correction (PFC)
    Wide Input Voltage Range (110~300V)
    Output Power Factor 0.9
    Cold Start
    Auto Sensing Frequency
    ECO Mode Operation for Energy Saving
    Selectable Output Voltage via LCD
    50Hz/60Hz Frequency Converter Mode Available
    Selectable Battery Low Voltage via LCD
    Power-On Self Test
    Advanced Battery Management (ABM)
    Short Circuit and Overload Protection
    Automatically Charging Battery at UPS Off Mode
    Fan Speed Auto Control when Load Varies
    Standard RS232 Communication Port
    USB/SNMP Communication Port (Optional)
    Emergency Power Off (EPO) (Optional)
    Extension Battery Bank (Optional)
    Built-In Isolation Transformer (Optional)
    Manual Bypass (Optional)
    N+X Redundancy Parallel (Optional)
