COMPACT 3L SERIES
Power Range：60 - 200 KVA
Online UPS
3:3
Three Level Inverter - %96 Efficiency.
Flexible Battery Quantity form 30 to 50pcs.
Strong Performance at Unbalanced Loads
Output Power Factor 1
LBS Function
»

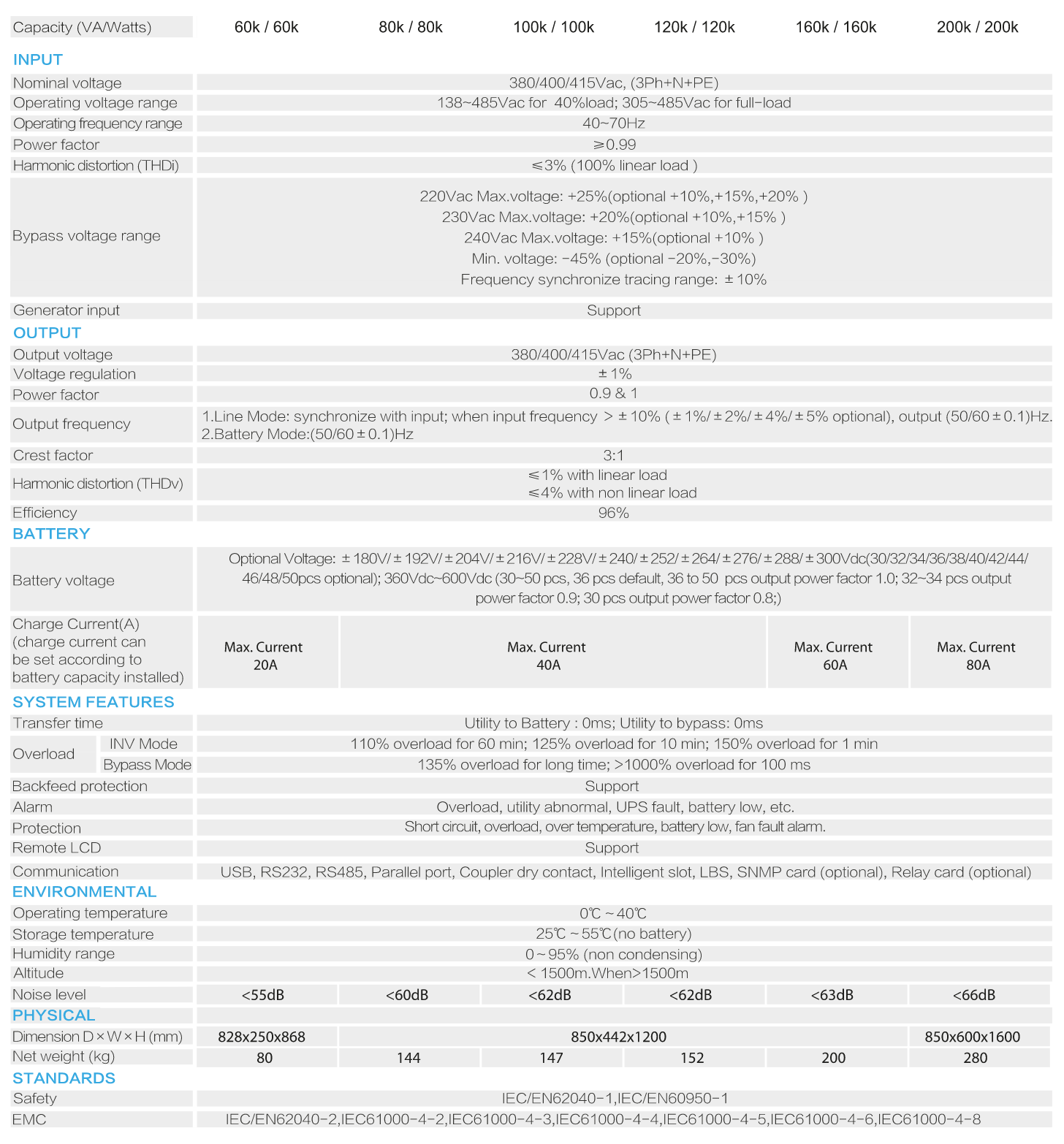

SPECIFICATIONS
Technical specifications of the mode
Compact 3 Phase Power Protection for Small to Medium IT Rooms
Three Level Inverter Technology
High Frequency and True Double-Conversion
High Efficiency %96
Parallelable Up to 6 units
Output Power Factor 1
LBS Function
Wide Input Voltage Range (138~485V)
Cold Start
Auto Sensing Frequency
ECO Mode Operation for Energy Saving
Selectable Output Voltage via LCD
50Hz/60Hz Frequency Converter Mode
Selectable Battery Low Voltage via LCD
Power-On Self Test
Advanced Battery Management
Short Circuit and Overload Protection
Automatically Charging Battery at UPS Off Mode
Generator Compatible
RS232, Dry Contact, SNMP
Emergency Power Off (EPO)
Three Level Inverter Technology
High Frequency and True Double-Conversion
High Efficiency %96
Parallelable Up to 6 units
Output Power Factor 1
LBS Function
Wide Input Voltage Range (138~485V)
Cold Start
Auto Sensing Frequency
ECO Mode Operation for Energy Saving
Selectable Output Voltage via LCD
50Hz/60Hz Frequency Converter Mode
Selectable Battery Low Voltage via LCD
Power-On Self Test
Advanced Battery Management
Short Circuit and Overload Protection
Automatically Charging Battery at UPS Off Mode
Generator Compatible
RS232, Dry Contact, SNMP
Emergency Power Off (EPO)
