High-voltage UPS Series

Overview
ZTR-HV series is Lithium iron phosphate battery system which designed for high voltage UPS system application, suitable for 100V to 800V UPS system which backup time is over lOmin. This battery system consists of battery racks and CBMS, every battery rack integrates with intelligent BMU inside. And this system has big advantages on safety, cycle life, energy density, fast charging, temperature range and environmental protection. Ensmart is committed to providing safe and stable power supply for UPS system.

Features
The battery module cnnsists of battery racks and CBMS.
•Racked with high performance LFP single cell, long life, safety and wide temperature range
•High energy density small size, light weight no pollution;
•Use CBMS-BMU design, protect voltage current temperature in whole process
•Integrated communication interface, CAN2.0 and RS485 communicate with UPS or PC
•Integrated LED indicatoi; display the SOC and operating status
. Balance between cells* balance between racks
•LCD display the battery system inibrmation(custDnnized)
•Racked in 19 inches standard containei; easily for installation and capadly expansion
•can customize the battery system with neutral line
•10 years design life. Stable performance, maintenance-free

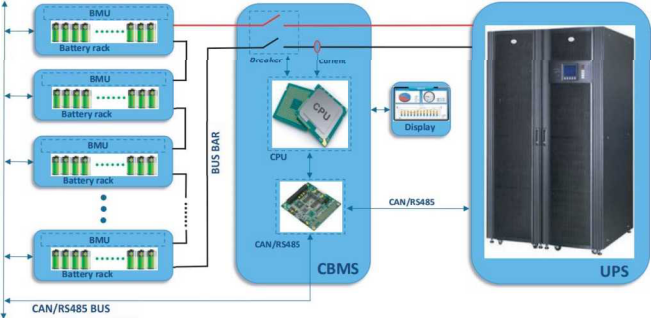

Architecture diagram
